Delta 3D Printing

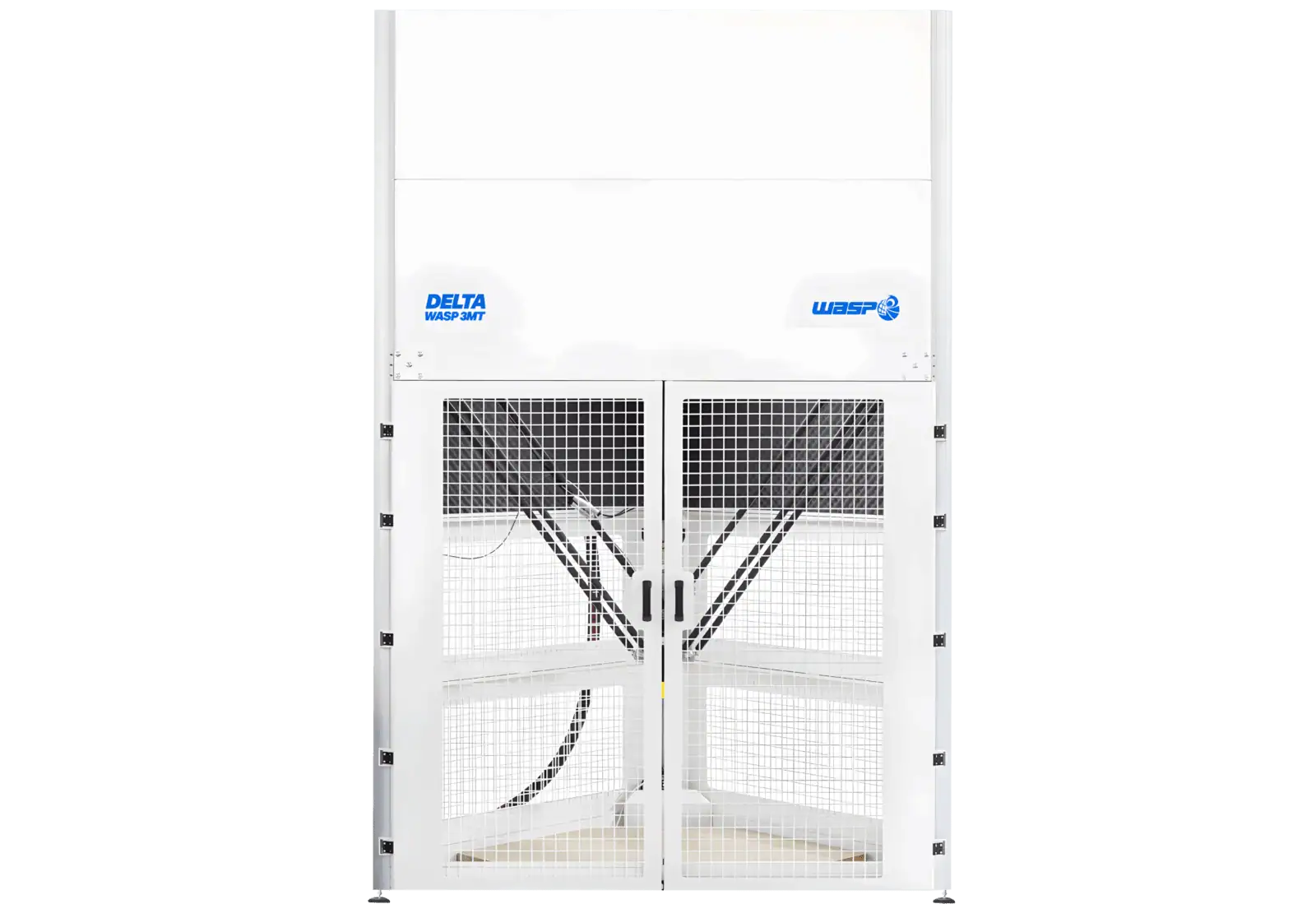

3MT CONCRETE
WASP 3MT CONCRETE defines a new standard in the world of additive manufacturing of concrete mortars with a large construction footprint and unparalleled versatility.
Request a QuoteINDUSTRIALS
Architectural
Health
Space and Aviation
Machine
Automotive
The LDM WASP Extruder XXL is fed using a slurry pump that delivers the material through a tube. The flow rate is controlled via a pressure sensor mounted at the extruder inlet, which can continuously measure the pressure and therefore the flow of the outgoing material in order to achieve the best extrusion conditions.
Technicial Specifications13
Building Volume
Ø1000 x h 1000 mm
Print Speed Max
200 mm/s
Acceleration
150 mm/s2
Nozzle Diameter (LDM WASP EXTRUDER XL)
Ø 4 – 6 – 8 mm
Nozzle Diameter (LDM WASP EXTRUDER XXL)
Ø 8 ile 30 mm
Load Volume
80 L
Tube Length
5 m
Maximum Pressure
35 bar
Maximum Granulometry
1 mm
Maximum Flow
250 L/h
Product Dimensions
2150 mm x 2350 mm x 3050 mm
Product Weight
350 kg
Power Requirement Introduction
220/240 V 50/60 Hz
Materials4
LDM WASP EXTRUDER XXL Ø 8 to 30 mm
Concrete mortars with a maximum particle size of 1 mm, fiber reinforced concrete (polymeric fibers, Lmax 30 mm; Wmax 15 kg/mc), foam concrete, clay, porcelain, grease, soil-based mixtures with natural fibers.
LDM WASP EXTRUDER XL Ø 4 – 6 – 8 mm
Clay, porcelain, grease, etc.
