Metal X™
System

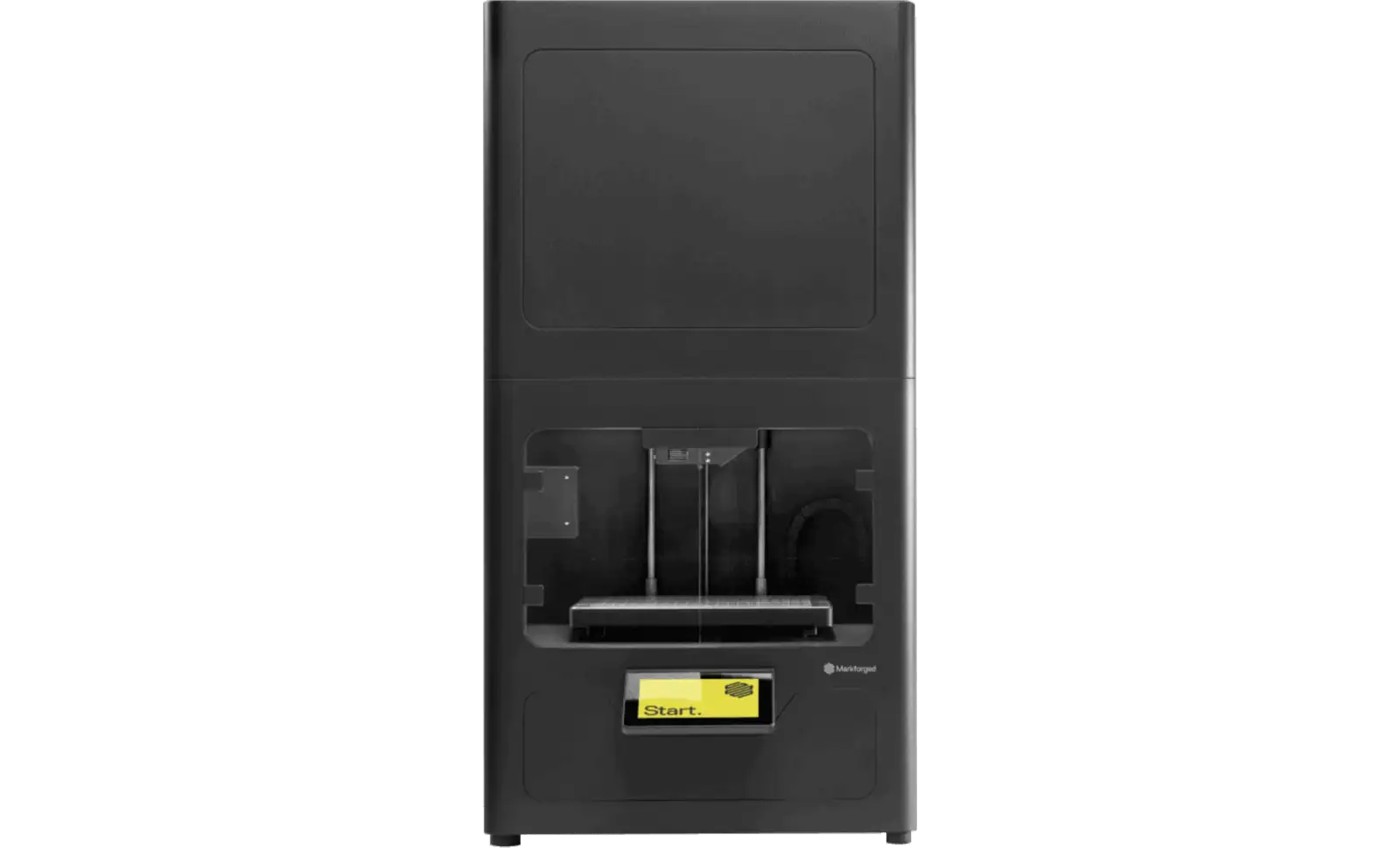

Metal X is the 3D printing solution for functional metal parts.
Request a QuoteINDUSTRIALS
Space and Aviation
Machine
Automotive
Education
Health
Metal X is the accessible way to produce complex parts from a variety of metals.
Simple and Powerful
Metal X is specialized among metal printing printers. It can turn out a wide variety of materials, from stainless steel to copper, in a closed workflow and is user-friendly.
Safe and Affordable
It has a platform that is safe to use and easily accessible for all users. It is more cost-effective than many metal 3D printing systems and does not require a dedicated operator and dust management system. By printing metal powder bonded to a plastic matrix, it eliminates many of the safety risks associated with traditional metal 3D printers.
Quality and Fast Printing
Metal X is purpose-built for consistent part quality and a flawless user experience. To deliver industrial grade parts quickly and reliably; It combines superior software, detailed material research and an advanced motion system.
D.F.A.M. Technology
Design
Create a CAD design of your part, upload your STL file, and choose from a variety of metals. Thanks to the Eiger software, your printing parameters are created automatically.
Metal filament is printed in layers. The software automatically calculates how much enlargement is required to compensate for shrinkage during the sintering process.
Wash
The printed parts go through a washing step to remove some of the binder.
Sinter
The parts go through the washing phase to clean the binding substance in the filament. Then the sintering phase begins and the process is completed.
Final Product
Your part is ready to use. Technically it behaves like any other metal part and can be machined into any shape you want when necessary.
Technicial Specifications4
Wash & Sinter3
Machine Dimensions
609 x 685 x 1,067 mm
Washing Volume
18,356 cm³
Oven Dimensions
1067 x 483 x 406 mm
Oven Volume
4,760 cm³
Peak Temperature
1300° C
Oven Dimensions
1778 x 1016 x 1270 mm
Oven Volume
22,283 cm³
Peak Temperature
1300° C
Materials6
System Details1
